건설공제회단말기
CWMA E-Card
Designated Terminal-Certified Product
In order to prevent the omission of a worker's retirement deduction report, making a mandatory for construction workers to use electronic cards when access the construction site
Main Functions
- Released in September 24, new products with the latest UI
- Excellent processing speed & response speed in authentication or screen transition
- 5-inch touch LCD with improved convenience, Plug & Play type products
- Suitable site: Use it by fixing it to the office, gate entrance, & the wall inside the container
- Whether to check Attending/Leave Work: Electronic card, worker fingerprint, mobile tagging
- Save & automatically transmit after fail to send Attending/Leave Work information
- Save Attending/Leave Work Authentication Photo during 3 Months & Inquire Within Terminal
- Dustproof/waterproof products specialized in special industries & construction sites
Product Specifications
| Items | Main Functions |
|---|---|
| Display | 5” Touch Screen |
| Communication Method | TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| OS | Android 11.0 |
| Processor | RK3568, quad-core, main frequency 2.0 Ghz CPU |
| Memory | 2G RAM / LPDDR4 |
| Keypad | IPS Touch LCD |
| Camera | MIPI stereo camera |
| Operating Temperature | -20℃ ~ 55℃ |
| Power | 12V DC |
Absenteeism & Tardiness Terminal - Booth Type(Gateware-ecard, N-GW-BT)
Main Functions
- Released in September 24, new products with the latest UI
- Excellent processing speed & response speed in authentication or screen transition
- 5-inch touch LCD with improved convenience, Plug & Play type products
- Suitable site: On-site interior that cannot be built by being fixed to the wall • Outside construction is possible
- Whether to check Attending/Leave Work: Electronic card, worker fingerprint, mobile tagging
- Save & automatically transmit after fail to send Attending/Leave Work information
- Save Attending/Leave Work authentication photos for 3 months & check in-device
- Dustproof/waterproof products specialized in special industries & construction sites
Product Specifications
| Items | Details |
|---|---|
| Processor | RK3568, quad-core, main frequency 2.0 Ghz CPU |
| OS | Android 11.0 |
| Memory | 2G RAM / LPDDR4 |
| Communication Method |
TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| Display | 5” Touch Screen |
| Authentication |
Card Reader : CWUM-B1 Fingerprint Reader : SFM Slim |
| Keypad | IPS Touch LCD |
| Camera | MIPI stereo camera |
| Operating Temperature | -20℃ ~ 55℃ |
| Power | 12V DC |
Main Specifications
Designated Terminal Certified By Construction Workers' Mutual Aid Association
-
- Server Interworking
- Real-time interworking with electronic card work management system operation server based on communication security protocol
-
- Authentication
- Attending/Leave Work Registration using electronic card and fingerprint, Check authentication information and photo through the LCD screen
-
- Communication
-
TCP/IP(Wired),
LTE (Wireless) Communication Support
-
- Monitoring
- Real-time Terminal Status Check
-
- S/W Updates
- Online Updates Support

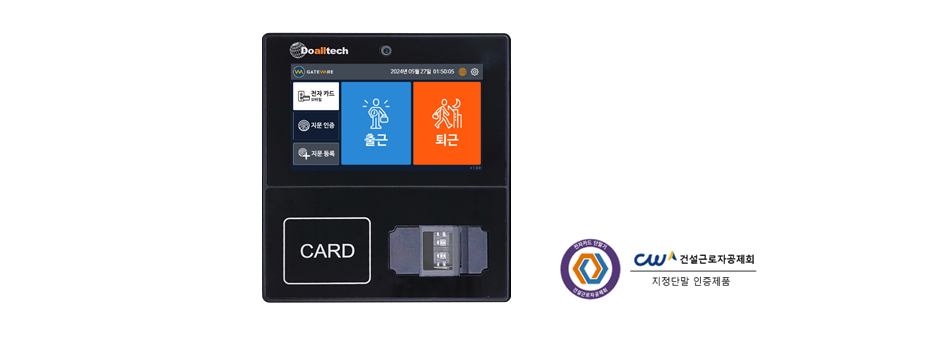

Absenteeism & Tardiness Terminal - Wall Type(Gateware-ecard, N-GW-WT)
Main Functions
- Released in September 24, new products with the latest UI
- Excellent processing speed & response speed in authentication or screen transition
- 5-inch touch LCD with improved convenience, Plug & Play type products
- Suitable site: Use it by fixing it to the office, gate entrance, and the wall inside the container
- Whether to check Attending/Leave Work: Electronic card, worker fingerprint, mobile tagging
- Save & automatically transmit after fail to send Attending/Leave Work information
- Save Attending/Leave Work authentication photos for 3 months & check in-device
- Dustproof/waterproof products specialized in special industries & construction sites
Product Specifications
| Items | Details |
|---|---|
| Processor |
1.8G Octa-Core Customized Computer vision CPU |
| OS | Android 9.0 (Security Patch : 2021.05.01) |
| Memory | 2G RAM / 16G Flash |
| Communication Method |
TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| Display | 8” High Light(400Lux, 800×1280) |
| Authentication |
Card Reader : EC-RF-100B Fingerprint Reader : SFM Slim |
| Keypad | IPS Touch LCD |
| Camera | 2MP WDR Low Light Camera |
| Operating Temperature | -20℃ ~ 50℃ |
| Power | 12V DC |
Main Specifications
Designated Terminal Certified By Construction Workers' Mutual Aid Association
-
- Server Interworking
- Real-time interworking with electronic card work management system operation server based on communication security protocol
-
- Authentication
- Attending/Leave Work Registration using electronic card and fingerprint, Check authentication information and photo through the LCD screen
-
- Communication
-
TCP/IP(Wired),
LTE (Wireless) Communication Support
-
- Monitoring
- Real-time Terminal Status Check
-
- S/W Updates
- Online Updates Support

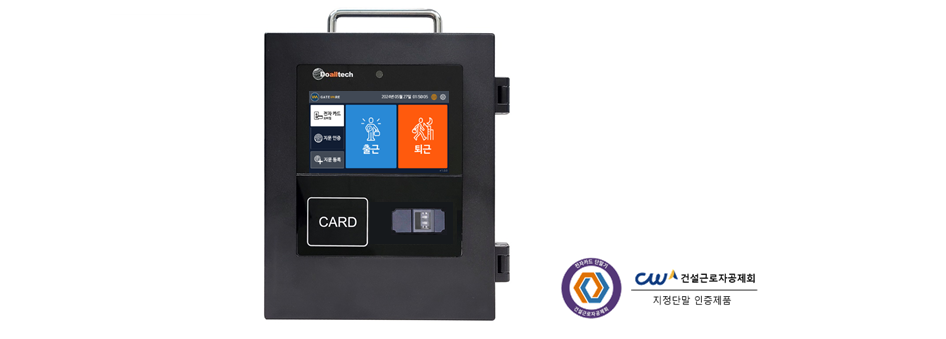

Absenteeism & Tardiness Terminal - Mobile Type(Gateware-ecard, N-GW-HT)
Main Functions
- Released in September 24, new products with the latest UI
- Excellent processing speed & response speed in authentication or screen transition
- 5-inch touch LCD with improved convenience, Plug & Play type products
- No separate construction is required as it is movable
- Improves portability by reducing product weight
- Suitable site: Suitable for sites where wired network environments cannot be established or for sites with space constraints
- Whether to check Attending/Leave Work: Electronic card, worker fingerprint, mobile tagging
- Save & automatically transmit after fail to send Attending/Leave Work information
- Save Attending/Leave Work Authentication Photo during 3 Months & Inquire Within Terminal
- Dustproof/waterproof products specialized in special industries & construction sites
Product Specifications
| Items | Details |
|---|---|
| Processor | RK3568, quad-core, main frequency 2.0 Ghz CPU |
| OS | Android 11.0 |
| Memory | 2G RAM / LPDDR4 |
| Communication Method |
TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| Display | 5” Touch Screen |
| Authentication |
Card Reader : CWUM-B1 Fingerprint Reader : SFM Slim |
| Keypad | IPS Touch LCD |
| Camera | MIPI stereo camera |
| Operating Temperature | -20℃ ~ 55℃ |
| Power | 12V DC |
Main Specifications
Designated Terminal Certified By Construction Workers' Mutual Aid Association
-
- Server Interworking
- Real-time interworking with electronic card work management system operation server based on communication security protocol
-
- Authentication
- Attending/Leave Work Registration using electronic card and fingerprint, Check authentication information and photo through the LCD screen
-
- Communication
-
TCP/IP(Wired),
LTE (Wireless) Communication Support
-
- Monitoring
- Real-time Terminal Status Check
-
- S/W Updates
- Online Updates Support

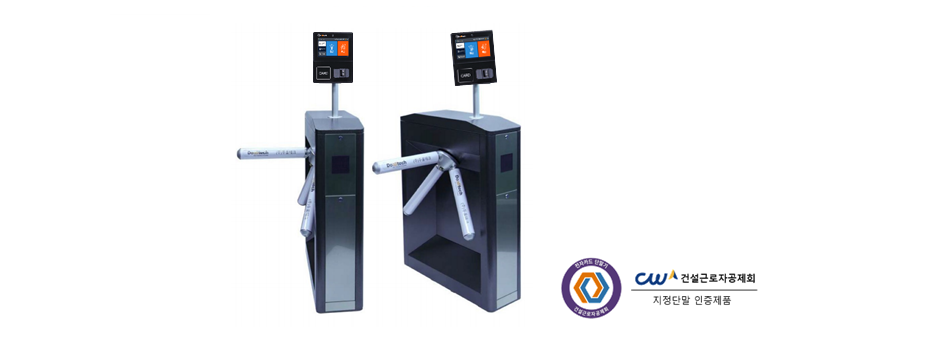

Absenteeism & Tardiness Terminal - Gate Type(Gateware-ecard, N-GW-GT)
Main Functions
- Released in September 24, new products with the latest UI
- Excellent processing speed & response speed in authentication or screen transition
- 5-inch touch LCD with improved convenience, Plug & Play type products
- Suitable site: Large site or site requiring thorough access control
- Whether to check Attending/Leave Work: Electronic card, worker fingerprint, mobile tagging
- Save & automatically transmit after fail to send Attending/Leave Work information
- Save Attending/Leave Work Authentication Photo during 3 Months & Inquire Within Terminal
- Dustproof/waterproof products specialized in special industries & construction sites
Product Specifications
| Items | Details |
|---|---|
| Processor | RK3568, quad-core, main frequency 2.0 Ghz CPU |
| OS | Android 11.0 |
| Memory | 2G RAM / LPDDR4 |
| Communication Method |
TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| Display | 5” Touch Screen |
| Authentication |
Card Reader : CWUM-B1 Fingerprint Reader : SFM Slim |
| Keypad | IPS Touch LCD |
| Camera | MIPI stereo camera |
| Operating Temperature | -20℃ ~ 55℃ |
| Power | 12V DC |
Main Specifications
Designated Terminal Certified By Construction Workers' Mutual Aid Association
-
- Server Interworking
- Real-time interworking with electronic card work management system operation server based on communication security protocol
-
- Authentication
- Attending/Leave Work Registration using electronic card and fingerprint, Check authentication information and photo through the LCD screen
-
- Communication
-
TCP/IP(Wired),
LTE (Wireless) Communication Support
-
- Monitoring
- Real-time Terminal Status Check
-
- S/W Updates
- Online Updates Support
Main Functions
- Personnel Attending/Leave Work Registration Available with Construction All Pass Electronic Card
- Fingerprint Recognition Attending/Leave Work Registration Available
- Real-time Terminal Status Check & On-line SW Update
- Several Information & Status Check Available Through an 8-inch Touch LCD
- Attending/Leave Work Records Encrypting & Real-time Transmission
- Save & Transmission in case of Attending/Leave Work Information Transmission Failure
- Save Attending/Leave Work Authentication Photo during 3 Months & Inquire Within Terminal
- Support stable operation with terminal real-time monitoring
Product Specifications
| Items | Main Functions |
|---|---|
| Display | 8” High Light |
| Communication Method | TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| OS | Android 9.0 |
| Processor | 1.8G Octa-Core |
| Memory | 2G RAM / 16G Flash |
| Keypad | Touch LCD |
| Camera | 2MP WDR Low Light Camera |
| Operating Temperature | -20℃ ~ 50℃ |
| Power | 12V DC |
Absenteeism & Tardiness Terminal - Booth Type(DTGFAFCF71CW21, GW-BT)
Main Functions
- Personnel Attending/Leave Work Registration Available with Construction All Pass Electronic Card
-
Fingerprint Recognition Attending/Leave Work Registration Available
- Forgery Fingerprint Detection, AES256 Encryption Technology Applied
- Ultra-High Speed Matching, International Standard Certified (FBI, PIV, FAP20) - Real-time Terminal Status Check & On-line SW Update
- Several Information & Status Check Available Through an 8-inch Touch LCD
- Attending/Leave Work Records Encrypting & Real-time Transmission
- Save & Transmission in case of Attending/Leave Work Information Transmission Failure
- Save Attending/Leave Work Authentication Photo during 3 Months & Inquire Within Terminal
- Support stable operation with terminal real-time monitoring
Product Specifications
| Items | Details |
|---|---|
| Processor |
1.8G Octa-Core Customized Computer vision CPU |
| OS | Android 9.0 (Security Patch : 2021.05.01) |
| Memory | 2G RAM / 16G Flash |
| Communication Method |
TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| Display | 8” High Light(400Lux, 800×1280) |
| Authentication |
Card Reader : EC-RF-100B Fingerprint Reader : SFM Slim |
| Keypad | IPS Touch LCD |
| Camera | 2MP WDR Low Light Camera |
| Operating Temperature | -20℃ ~ 50℃ |
| Power | 12V DC |
Main Specifications
Designated Terminal Certified By Construction Workers' Mutual Aid Association
-
- Server Interworking
- Real-time interworking with electronic card work management system operation server based on communication security protocol
-
- Authentication
- Attending/Leave Work Registration using electronic card and fingerprint, Check authentication information and photo through the LCD screen
-
- Communication
-
TCP/IP(Wired),
LTE (Wireless) Communication Support
-
- Monitoring
- Real-time Terminal Status Check
-
- S/W Updates
- Online Updates Support
Absenteeism & Tardiness Terminal - Wall Type(DTGFAFCF71CW21, GW-WT)
Main Functions
- Personnel Attending/Leave Work Registration Available with Construction All Pass Electronic Card
-
Fingerprint Recognition Attending/Leave Work Registration Available
- Forgery Fingerprint Detection, AES256 Encryption Technology Applied
- Ultra-High Speed Matching, International Standard Certified (FBI, PIV, FAP20) - Real-time Terminal Status Check & On-line SW Update
- Several Information & Status Check Available Through an 8-inch Touch LCD
- Attending/Leave Work Records Encrypting & Real-time Transmission
- Save & Transmission in case of Attending/Leave Work Information Transmission Failure
- Save Attending/Leave Work Authentication Photo during 3 Months & Inquire Within Terminal
- Support stable operation with terminal real-time monitoring
Product Specifications
| Items | Details |
|---|---|
| Processor |
1.8G Octa-Core Customized Computer vision CPU |
| OS | Android 9.0 (Security Patch : 2021.05.01) |
| Memory | 2G RAM / 16G Flash |
| Communication Method |
TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| Display | 8” High Light(400Lux, 800×1280) |
| Authentication |
Card Reader : EC-RF-100B Fingerprint Reader : SFM Slim |
| Keypad | IPS Touch LCD |
| Camera | 2MP WDR Low Light Camera |
| Operating Temperature | -20℃ ~ 50℃ |
| Power | 12V DC |
Main Specifications
Designated Terminal Certified By Construction Workers' Mutual Aid Association
-
- Server Interworking
- Real-time interworking with electronic card work management system operation server based on communication security protocol
-
- Authentication
- Attending/Leave Work Registration using electronic card and fingerprint, Check authentication information and photo through the LCD screen
-
- Communication
-
TCP/IP(Wired),
LTE (Wireless) Communication Support
-
- Monitoring
- Real-time Terminal Status Check
-
- S/W Updates
- Online Updates Support
Absenteeism & Tardiness Terminal - Mobile Type(DTGFAFCF71CW21, GW-HT)
Main Functions
- Personnel Attending/Leave Work Registration Available with Construction All Pass Electronic Card
-
Fingerprint Recognition Attending/Leave Work Registration Available
- Forgery Fingerprint Detection, AES256 Encryption Technology Applied
- Ultra-High Speed Matching, International Standard Certified (FBI, PIV, FAP20) - Real-time Terminal Status Check & On-line SW Update
- Several Information & Status Check Available Through an 8-inch Touch LCD
- Attending/Leave Work Records Encrypting & Real-time Transmission
- Save & Transmission in case of Attending/Leave Work Information Transmission Failure
- Save Attending/Leave Work Authentication Photo during 3 Months & Inquire Within Terminal
- Support stable operation with terminal real-time monitoring
Product Specifications
| Items | Details |
|---|---|
| Processor |
1.8G Octa-Core Customized Computer vision CPU |
| OS | Android 9.0 (Security Patch : 2021.05.01) |
| Memory | 2G RAM / 16G Flash |
| Communication Method |
TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| Display | 8” High Light(400Lux, 800×1280) |
| Authentication |
Card Reader : EC-RF-100B Fingerprint Reader : SFM Slim |
| Keypad | IPS Touch LCD |
| Camera | 2MP WDR Low Light Camera |
| Operating Temperature | -20℃ ~ 50℃ |
| Power | 12V DC |
Main Specifications
Designated Terminal Certified By Construction Workers' Mutual Aid Association
-
- Server Interworking
- Real-time interworking with electronic card work management system operation server based on communication security protocol
-
- Authentication
- Attending/Leave Work Registration using electronic card and fingerprint, Check authentication information and photo through the LCD screen
-
- Communication
-
TCP/IP(Wired),
LTE (Wireless) Communication Support
-
- Monitoring
- Real-time Terminal Status Check
-
- S/W Updates
- Online Updates Support
Absenteeism & Tardiness Terminal - Gate Type(DTGFAFCF71CW21, GW-GT)
Main Functions
- Personnel Attending/Leave Work Registration Available with Construction All Pass Electronic Card
-
Fingerprint Recognition Attending/Leave Work Registration Available
- Forgery Fingerprint Detection, AES256 Encryption Technology Applied
- Ultra-High Speed Matching, International Standard Certified (FBI, PIV, FAP20) - Real-time Terminal Status Check & On-line SW Update
- Several Information & Status Check Available Through an 8-inch Touch LCD
- Attending/Leave Work Records Encrypting & Real-time Transmission
- Save & Transmission in case of Attending/Leave Work Information Transmission Failure
- Save Attending/Leave Work Authentication Photo during 3 Months & Inquire Within Terminal
- Support stable operation with terminal real-time monitoring
Product Specifications
| Items | Details |
|---|---|
| Processor |
1.8G Octa-Core Customized Computer vision CPU |
| OS | Android 9.0 (Security Patch : 2021.05.01) |
| Memory | 2G RAM / 16G Flash |
| Communication Method |
TCP / IP Wired * Wireless Available In case of LTE Modem Installation |
| Display | 8” High Light(400Lux, 800×1280) |
| Authentication |
Card Reader : EC-RF-100B Fingerprint Reader : SFM Slim |
| Keypad | IPS Touch LCD |
| Camera | 2MP WDR Low Light Camera |
| Operating Temperature | -20℃ ~ 50℃ |
| Power | 12V DC |
Main Specifications
Designated Terminal Certified By Construction Workers' Mutual Aid Association
-
- Server Interworking
- Real-time interworking with electronic card work management system operation server based on communication security protocol
-
- Authentication
- Attending/Leave Work Registration using electronic card and fingerprint, Check authentication information and photo through the LCD screen
-
- Communication
-
TCP/IP(Wired),
LTE (Wireless) Communication Support
-
- Monitoring
- Real-time Terminal Status Check
-
- S/W Updates
- Online Updates Support
