Construction Labor Monitoring System

HOME Construction Labor Monitoring System Safety CCTV Monitoring System

Secure company position by establishing construction safety monitoring system and raising the internal and external image of construction safety

Secure company position by establishing construction safety monitoring system
and raising the internal and external image of construction safety

  • Safety Accidents
    Prevention
    Regular monitoring of workers' unstable behavior and risk process safety task
  • Management Measures Standardization
    Suggest the entire site management measure for CCTV installation targets and installation criteria by construction sector

Safety CCTV Integrated Monitoring System Establishment

  • The Present Issues
    1. Consistent real-time monitoring of weak areas in location and time for safety management is required.
    2. Raise of worker's safety awareness is required through Close-up CCTV shooting of occupational groups with high risk of safety accidents.
    3. Standardization of operation of CCTV monitoring system for safety is required.
  • Solution Effect
    1. Contribute to the prevention of worker safety accidents through regular monitoring
    2. Provide integrated safety management monitoring system for entire sites
  • Headquarters Integrated Monitoring System Establishment
    - Headquarters Streaming Server Installation
    - Integrated VMS Software Setting, Video Interworking
    - Monitoring System Establishment & Image Interworking
    - Mobile Video Monitoring App. Support
  • Site CCTV Monitoring System Establishment
    - New Sites, CCTV Monitoring System Establishment
    - Site CCTV & Headquarters Integrated Monitoring System Interworking
    - Integrated Monitoring System between Headquarters & Sites Stabilization

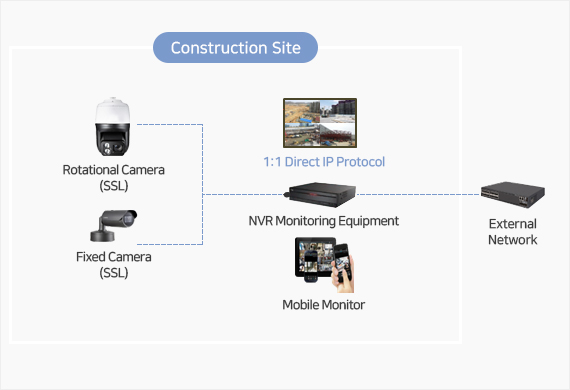

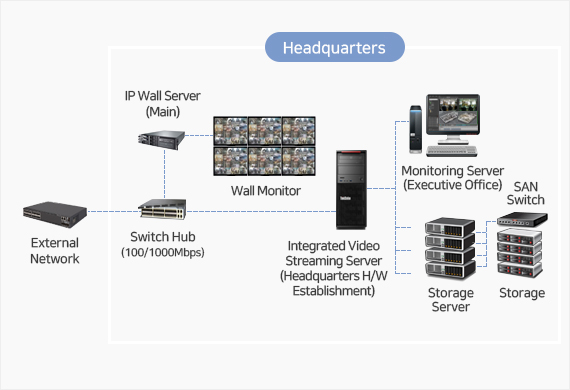

Site Monitoring & Headquarters Integrated Control System Configuration

  • Headquarters New Establishments Items
    - Video Streaming Server (Including Integrated VMS Software) Storage Server, Storage Server Configuration
    - Monitoring System & Others (Executive Office, including a 55-inch monitor)
    - New Site, Video & Mobile Interworking
  • Site New Establishment Items
    - Camera, Wireless Communication Equipment
    - NVR Monitoring System (Including 43-inch or 55-inch monitors)
    - Video Recording
    - Smartphone monitoring interworking with person in charge of site

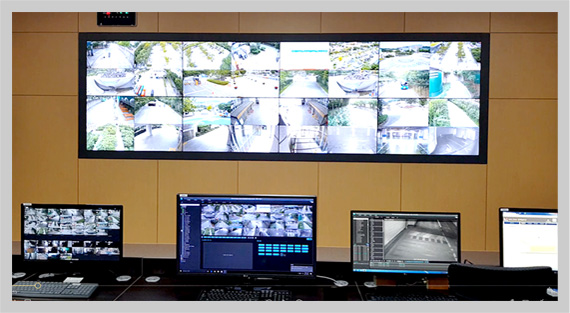

  • Headquarters Integrated Control Center_Monitoring Examples

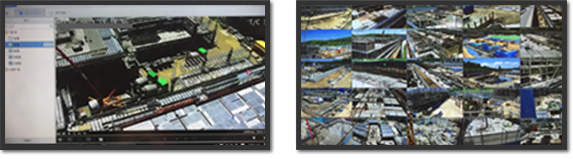

  • Construction Site & Integrated Situation Room_Monitoring Examples

    * 1-channel image control screen pop-up function in case of clicking on-site video

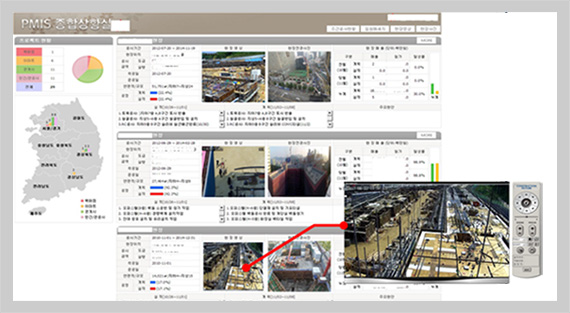

    S Construction Company, Integrated Situation Room System Establishment and Operation
    S Construction Company, 15 Projects, 40 Megapixel Cameras, Headquarters Integrated Monitoring System Establishment and Operation
    Integrated Situation Room Web Site Opened, Establish and operate the comprehensive process status monitoring system including site overview, process status, on-site sales, on-site video/photos, and statistical data through linking with internal backbone network of S construction company.

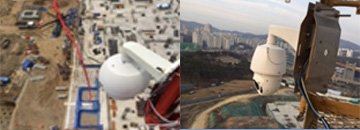

  • Tower Crane CCTV Establishment

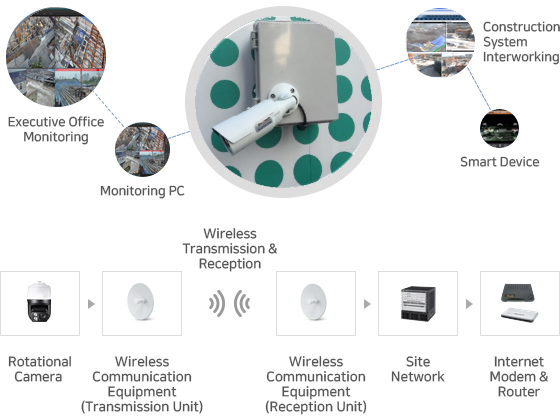

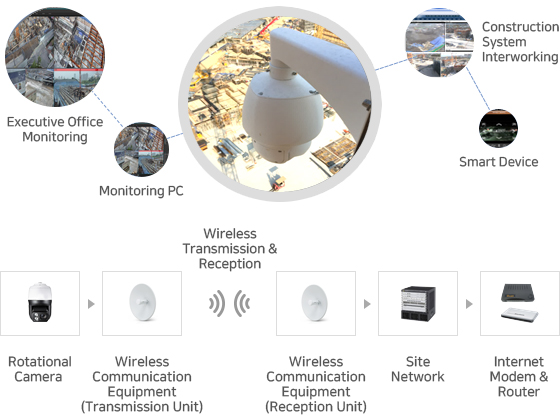

    Installed on the top of the tower crane and used to monitor site process status and surveillance for workers' safety, and transmits video to NVR by wireless communication method.
    Installation Purpose Site Process Status & Workers' Safety Management
    Installation Location Tower Crane Top
    Equipment Type Rotational Camera (IR Function)
    Communication Type Wireless Type
    Power Supply Facilities Ground Switch Box 220V
  • Fence & Gate CCTV Establishment
    Installed on the top of fence and gate, using to manage facility located on fixed location and prevent crime, and transmits video to NVR by wired/wireless communication method according to the site conditions
    Installation Purpose Complaints, External Personnel/Vehicle Monitoring Around Gate
    Installation Location Gate & Fence Upper
    Equipment Type Gate & Fence Upper
    Communication Type Wireless/Wired Type
    Power Supply Facilities Ground Switch Box 220V

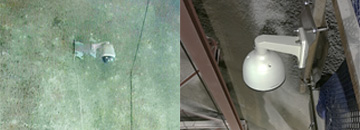

  • Tunnel Inside CCTV Establishment
    Used to manage the tunnel inside safety and monitor tunnel face sections intensively, videos are transmitted to NVR via wired/wireless communication method according to the site conditions
    Installation Purpose Tunnel Inside Safety Management, Blasting Monitoring
    Installation Location Tunnel Upper Retaining Wall
    Equipment Type Rotational Camera (Infrared IR Function)
    Communication Type Wireless/Wired Type
    Power Supply Facilities Tunnel Inside Switch Box 220V

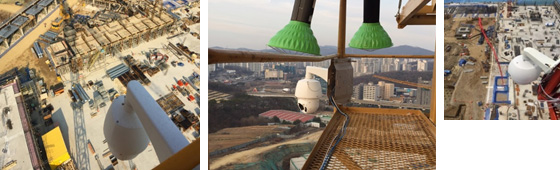

  • Tower Crane

    Figure of installation on the top of Tower Crane

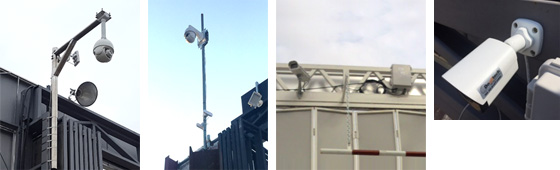

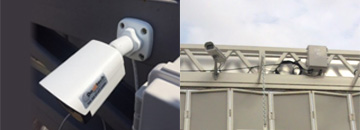

  • Fence, Gate

    Figure of installation on the top of Gate & Fence

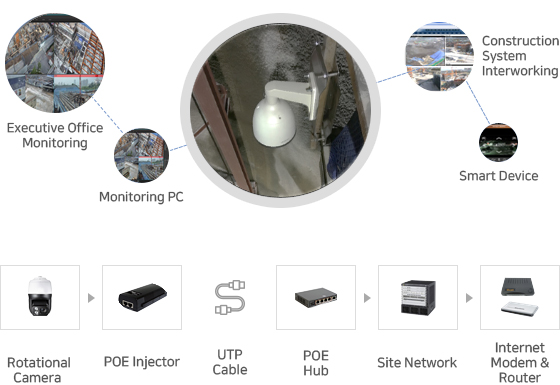

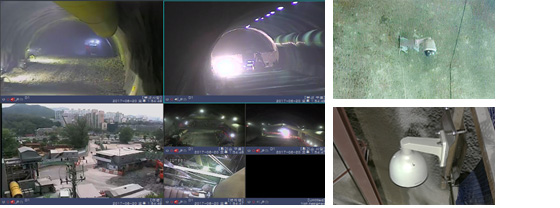

  • Tunnel

    Figure of installation in tunnel inside

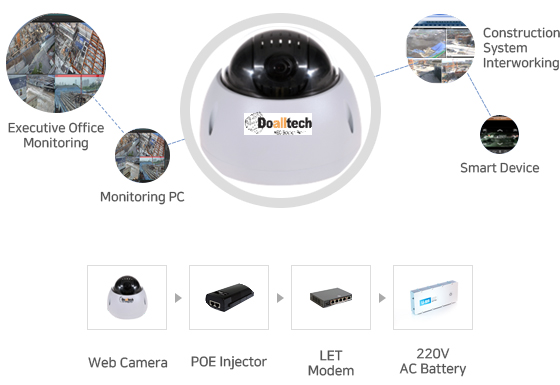

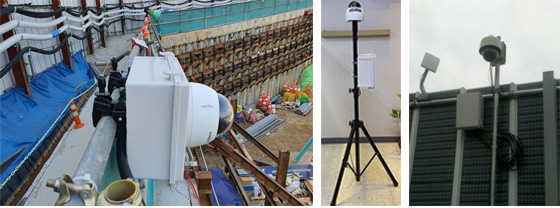

  • Mobile Type

    Figure of installation for Mobile Type
